Tentacle Sync E – Standard Set

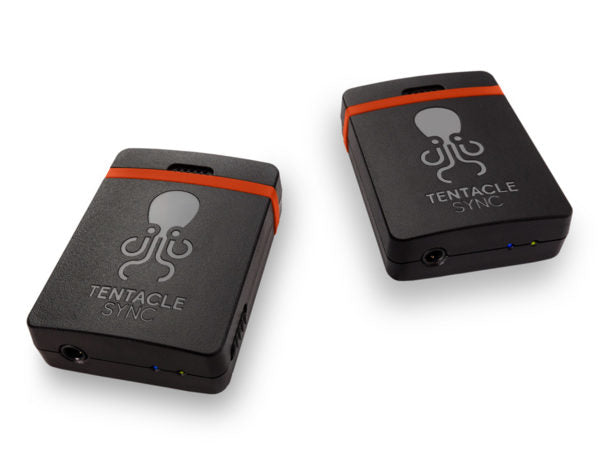

The Tentacle SYNC E Standard Set is a complete hardware/software solution to get you started with timecode syncing. It includes two super-small and user-friendly timecode generators and two free licenses for our Tentacle Sync Studio Software for macOS. Tentacle Sync E and Tentacle Sync Studio work hand in hand to help you accelerate your syncing workflow from shooting through to post-production.

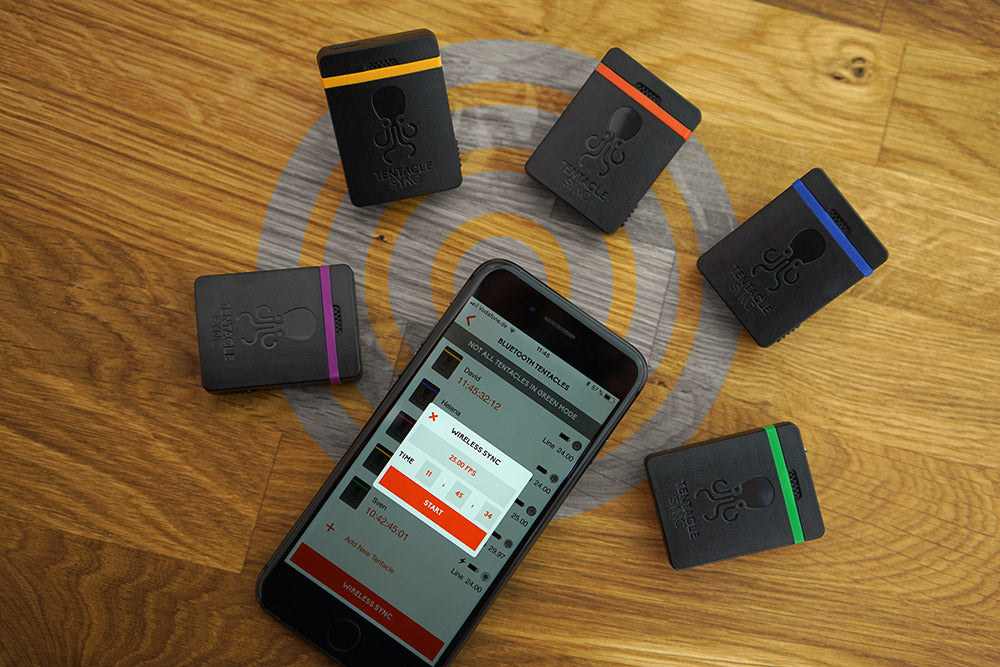

Tentacle Sync E comes with Bluetooth Low Energy as standard, making setup even easier and allowing you to monitor all Tentacles on your mobile device. The Tentacle Setup app can tell you with frame accuracy how well your Tentacles are syncing. The Tentacle Sync E works with nearly any kind of camera – from a DSLR to an ARRI Alexa – and almost any kind of audio recorder. The 3.5mm mini jack is without a doubt the most common and versatile connector in the world. And with our new clamp it’s now become lockable, meaning you don’t need to buy any non-standard, unusual cables or connectors.
FEATURES
- Super Small and Lightweight
- Easy Setup and Monitoring via Bluetooth 4.2 (Low Energy)
- Generates and accepts any SMPTE Timecode Rates
- Two Tentacle Sync Studio Software Licenses Included
- Included Tentacle Clamp locks a Right-Angle Mini Jack Connector
- Improved Built-In Reference Microphone
- Designed and Made With Love in Cologne, Germany
SPECS
LTC Timecode: According to SMPTE-12M Standard
Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
Timecode I/O: Mini Jack Socket
Audio: Built-In Reference Mic
Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)
Mounting: Integrated Hook Surface on the Back for Easy Mounting
Weight: 30 g / 1 oz
Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

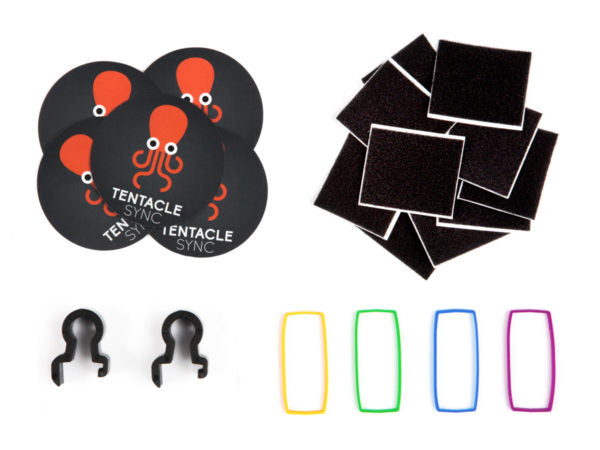

WHAT’S IN THE BOX?
- 2x Tentacle Sync E – Timecode Generators
- 2x Mini-Jack-Cables (90° angled) for Syncing or Connecting to Cameras with TRS Input like 5D, BMPCC, GH4 …
- 2x USB-C Cables for Charging and Setup (Win/Mac)
- 2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
- 10x Velcro Loop Pads for Mounting the Tentacle to any Device
- 4x Coloured Rubber Bands
- 1x Quickstart Guide
- 2x Mini-Jack to BNC Cables for connecting to ENG cameras with the standard BNC connector
