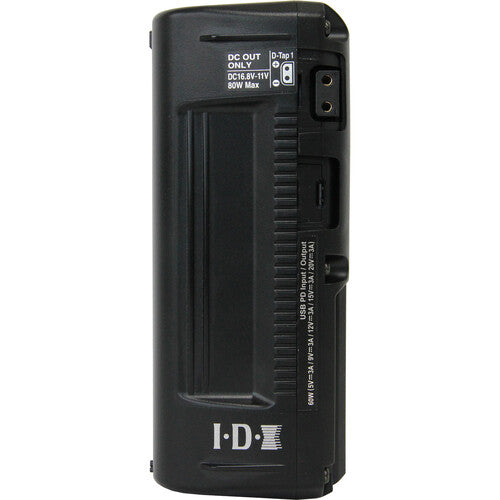

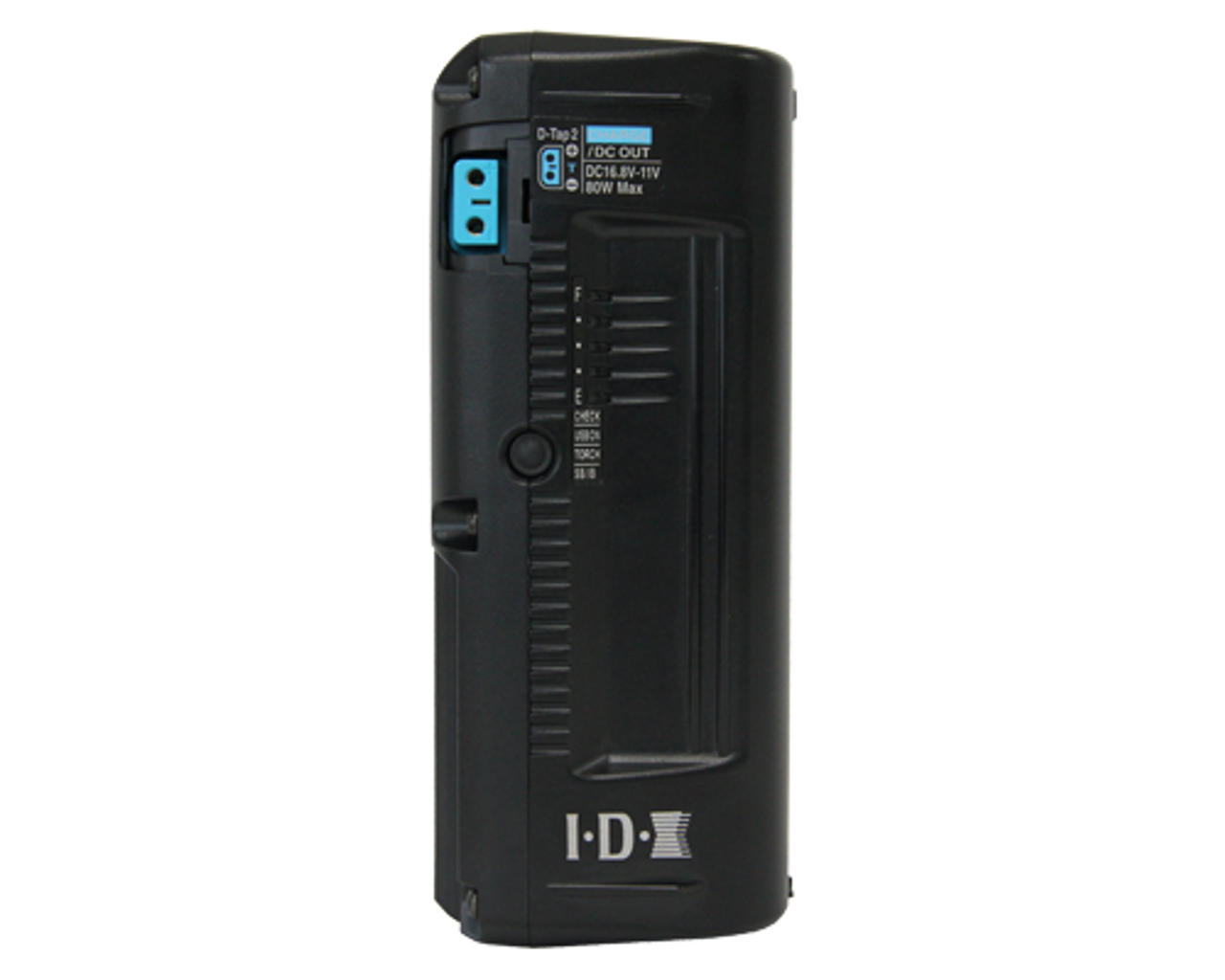

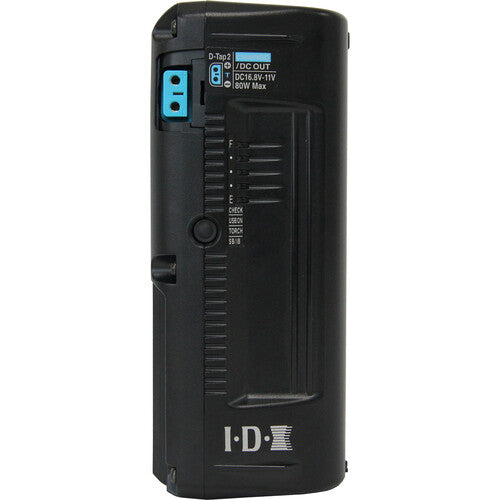

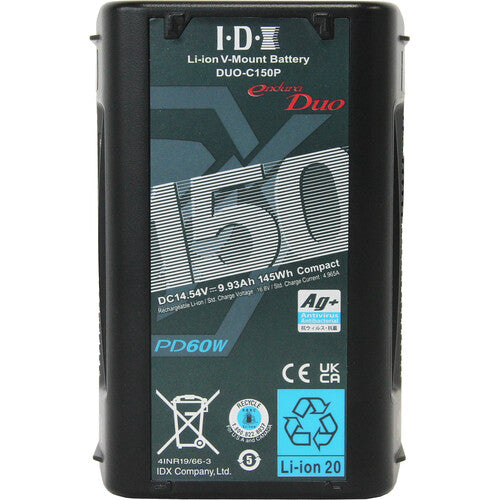

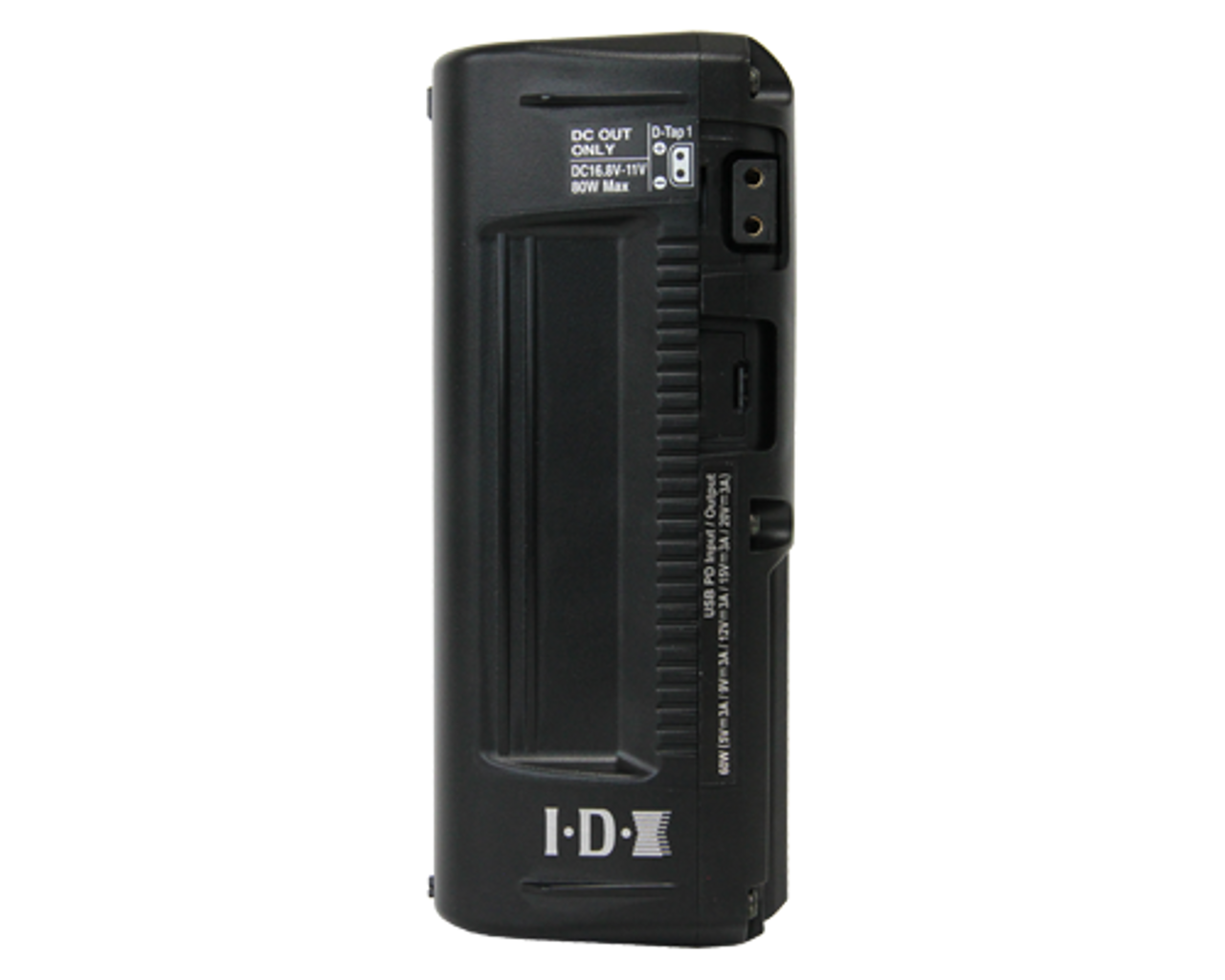

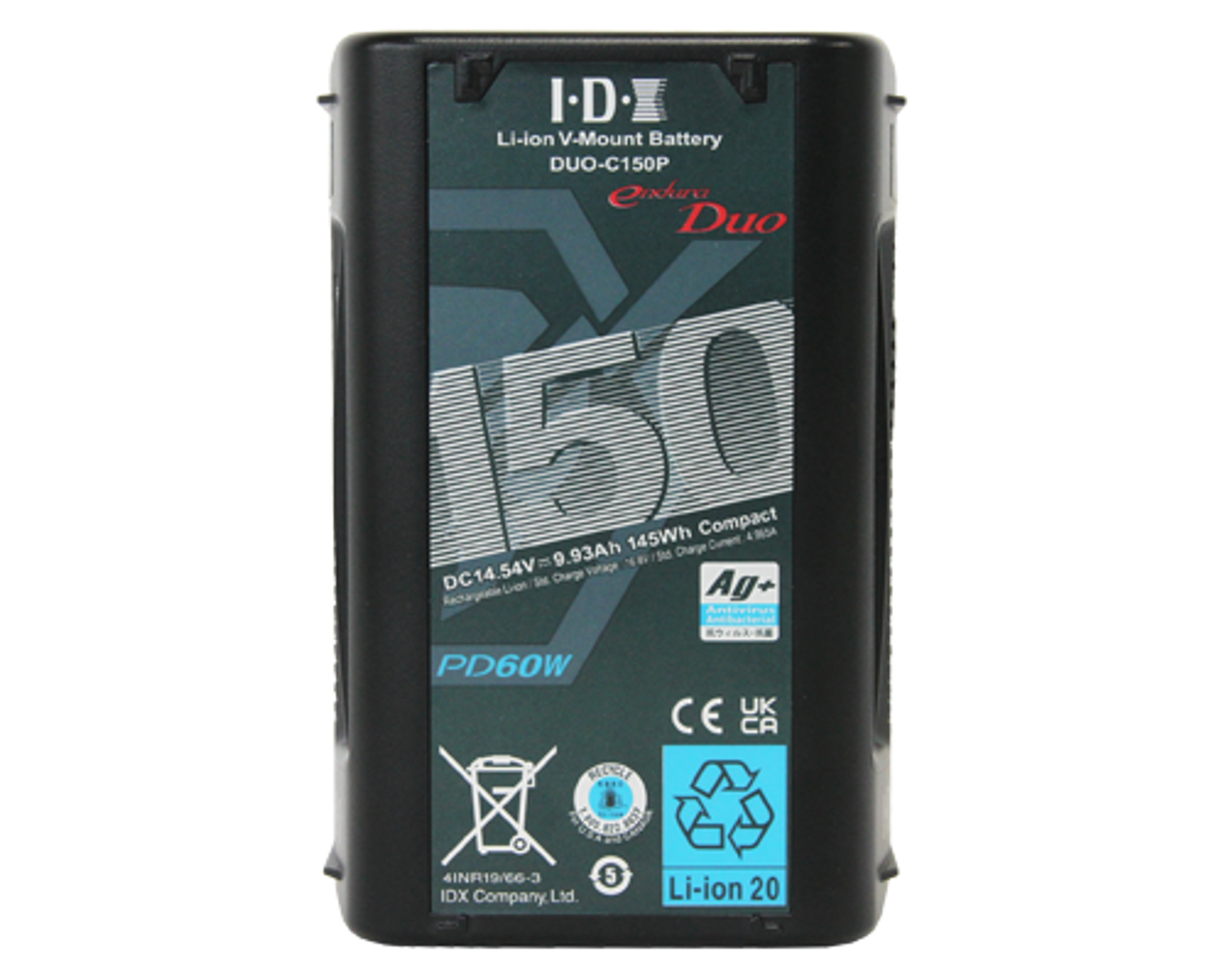

IDX System Technology DUO-C150P 145Wh High-Load Li-Ion V-Mount Battery w 2x D-Tap and USB-PD
The IDX System Technology DUO-C150P is the successor of the popular DUO-C150 battery!
Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.
| Capacity: | 145Wh (14.54V/ 9.93Ah) |
| Max Output Voltage: | 16.8V DC |
| Nominal Voltage: | 14.54V DC |
| Max Discharge Current: | 14A |
| D-Tap: | 80W each |
| USB-C PD: | DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W |
| End Voltage: | 11V |
| Battery Protection: | Over-charge, Over-discharge, Over-current, Thermal protection |
| Ambient Temperature: | To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)To store: -4°F ~ 122°F (less than 1 month) |
| Weight | 2.09 lbs |
